Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out

Place of Origin : Guangdong, China

Brand Name : AHONY or OEM

Model Number : eMobi F100w M

Packaging Details : carton box for high efficiency 60w mono foldable portable solar charging kit bag dual USB PWM controller CE for power station lithium battery

Supply Ability : 5000 Piece/Pieces per Month

MOQ : 2 pieces

Price : $105.00/pieces 2-99 pieces

Certification : CE ROHS

Payment Terms : Western Union, T/T, L/C, D/A, MoneyGram

Warranty : 3months-1year, 1 year

Free installation service : NO

Application : Home

Solar Panel Type : Monocrystalline Silicon

Battery Type : Lead-Acid, Lithium Ion

Controller Type : PWM

Mounting Type : Ground Mounting

Load Power (W) : 500wh

Output Voltage (V) : 12v

Output Frequency : 50hz

Work Time (h) : 4-6hours

Certificate : CE ROHS ISO9001

Pre-sales project design : Y

name : portable foldable solar charging kit

application : charging lithium battery power station

suitable for : camping rv outdoor emergency disaster recovery

Type : PWM charge controller foldable solar with supporting leg

Load : power station 450wh

Function : multi function charging 5v-19v

Battery Capacity : do not include battery

feature : A grade cell LCD display regulator with leg

Port : Shenzhen

Contact Now

Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out

Product Description
This New eMobi F100w M foldable solar kit is with very small size to charge small portable generator 250wh to 450wh;
1.supporting leg to get max angle of sunshine,get 15-20% more power than regular;
2.the front colour stripe is green,colour can be custmoized to orange,red,yellow or any colour the same with your logo,we offer different designs and colurs,can print customer's logo;
3.charge controller is PWM with LCD display;
4.controller support all kinds of battery including lithium LiFePO4, LITHIUM ION,lead acid,gel,flood batteries etc.
Traditonal function and feature.
it has the best size that is suitable for RV,the voltage is 20V which is better for 12v battery.
A grade mono solar cells,efficienty is over 21.3%;
All parts cables,connectors,charge controller in 1 suitcase,portable and light weight
strong solid thick fibreglass backsheet,heat resistance;
With a bag on back to fix and fill in the cable.

Folding solar panel eMobi F100w M uses waterproof fabric cloth and flexible solar panel to sew together,this is
renew for traditional rigid folding solar panel.

The textile has a inner PU layer to prevent water come in panel and makes it waterproof.
The cell efficiency is 21.3%-22.5% makes size smaller than panel with other low efficiency solar cells.
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
Item
Description
Model No.
eMobi FM100W
Power max
100wp
Folded size
400*360*80mm
Open size
1980*400*4mm
N.W:
4.3kg
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
Direction for use
使用说明
-The foldable kit has cable and MC4 connector which can plug to portable generator;
-there is controller,battery clips that can charge different batteries like lead acid,gel battery,sealed or flood batteries,charge controller has charging and discharging function and LCD display.This charge controller also support lithium LifePo4 etc battery.
-when connected battery,the dual USB can charge all kinds of 5v port like cellphone,powerbank,drones,bluetooth etc.
Widely used for:
Folding solar kits,Portable solar generator,Lead acid battery,Marine use battery,Electrical motocycle,Gel battery,Car battery,flood battery etc.
This charge controller do not support lithium battery,if you must use to charge lithium battery,please consult sales person to change another one.

Application scene
-Self-driving travel
-cycling
-mountain climbing
-yacht,boat,marine
-Desert
-snow mountain
-disaster area
-camping picnic
-Portable refrigerator

For all outdoor to meet the 12v or customized power requirements.Hot sale solar panel folding solar kit 60w small size portable light weght for charging 12v battery used in camping.

  • Description of application effect

Cable,charge controller,battery clips all in one design,very small size and only 4.3kg/9.46lbs.
Only need open the kit,stick on the supporting leg to get max vertical shinning and max power.Connect battery.
Easy,portable,environmental!
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
Size Information
Size Chart of This Design
Model No.
eMobi F5x20w or eMobi F100w M or eMobi F5*20w
Product Name
A grade cell 100w mono portable folding solar charging bag dual USB PWM controller CE for rv 5v 12v power station all batteries
Maximum Power[Wp]
100
Solar Cell
Mono PERC A Grade Solar Cell
Cell Efficiency
23.5%-25%
Folded Size[mm]
400*360*60
Open Size[mm]
1980*400*4
Max Power Voltage Vmp[V]
20.26
Max Power Current Imp[A]
4.94
Open Circuit Voltage Voc[V]
24.05
Short Circuit Current Isc[A]
5.34
Net.Weight[kg]
4.3
NOCT[℃]
45±2
Operating Temperature[℃]
-40/+85
Temperature Coefficient Pmax[%/℃]
-0.4
Temperature Coefficient Voc[[mV/℃]
-2mV
Temperature Coefficient Isc[mA/℃]
0.037
Maximum System Voltage[V]
100 V
Certification
CE ROHS ISO9001
Suface/backsheet
PET+FR4 fibreglass
Charge controller
PWM 10A 12/24V,2 USB,LCD display
Cables
5m 14AWG cable
Supporting Leg
Yes
Hook up way
ropes
Packing&Shipping
1 pcs in a bubble plastic bag,then in 1 carton box,plywood pallet.The whole package will use thin film to protect and make it waterproof.
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
Related Products
After Sales Service
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
After sale service
Technical:we have professional technical more than 9years to answer your questions and give support,training;
Sales:sales person will react fast to answer your emails,phone calls.
Warranty:AHONY fully follow warranty rules to guide customers righ way to use,once there are defects,we'll replace the product or parts as soon as possible.
Company Introduction
AHONY POWER was founded in Shenzhen,southest China nearby Hongkong,Dongguan,Huizhou.Our team have more than 8 years solar experience,including producing,marketing,R&D.Ahony owns 4 official issued solar patents,1 of which is solar quick charge invention patent.We passed ISO9001,products are certified by CE,ROHS,SGS,IEC.For every product offered by Ahony,we have strict producing process,quality inspection process and testing process.Ahony is dedicated to clean energy-solar technology innovation,ultralight solar paneltechnology,environmental friendly solar products,solar application,power products etc.
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out
Folding Solar Charging Bag portable solar panel power supply efficiency cell solar module for home generator battery out

Our Services & Strength

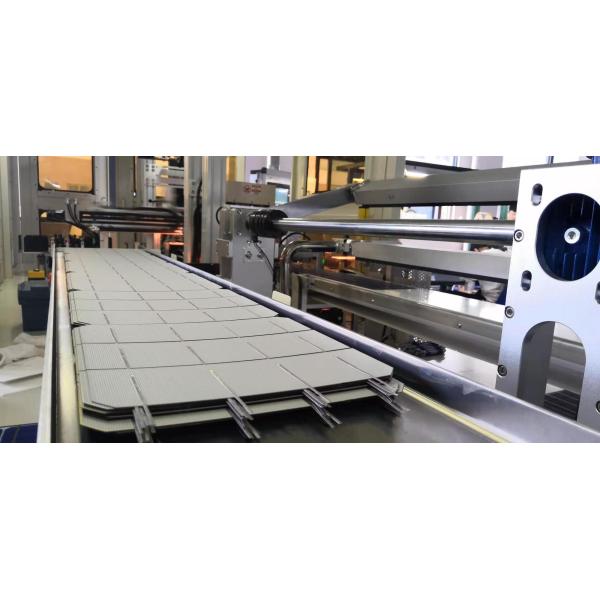

Automatically soldering for solar module,laser cutting for flexible solar panel.A grade quality solar cell high efficiency;
Strict quality control under ISO9001 requirements,
Engineer helps to design different solar panels and customize details.
More than 3 times EL and IV test insure max power at every step.
FAQ
Q:How many years warranty for your solar panel?
A:This foldable kit 1 year warranty,semi flexible solar panel 2 years,semi rigid 3 years,glass panel 5 years.
Q:Are you a factory or trading company?
A:we own factory mainly R&D,produce,assembly ulralight solar panel,foldable solar kits,solar panels,solar parts etc.
Q:What is your biggest advantage?
A:Our biggest advantage is flexible,fast,efficient to support(technical,sales,QC)customers to make OEM,deliver fast and exact what customer want.
